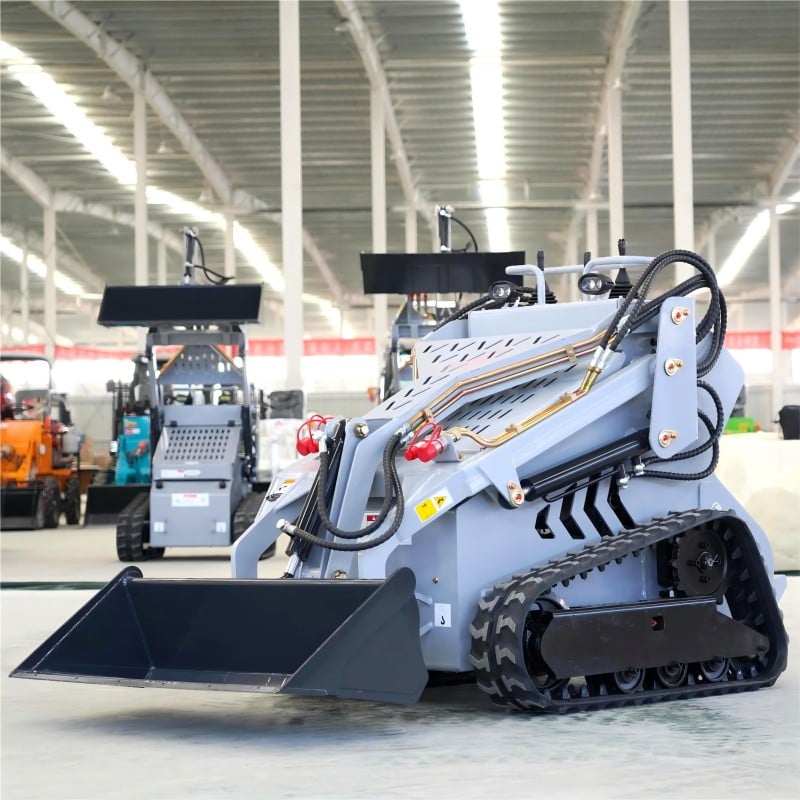

The skid steer loader has a compact body and a small turning radius, and can operate freely in narrow spaces, such as indoor construction, city streets, warehouses, etc. It can quickly replace attachments and achieve multiple functions. It is widely used in construction, municipal maintenance, agricultural production, logistics warehousing, mining and other fields. The control system is simple and easy to understand, and operators can operate it proficiently after a short training period. Although it is small in size, it has excellent power performance and can meet various heavy-duty operation requirements.
| Place of Origin: | Jining, Shandong, China |
| Model Number: | DC480 |
Compared with large construction machinery, skid steer loaders have lower purchase costs, and their modular design makes repairs and maintenance easier (for example, the integrated design of the fuel tank and hydraulic oil tank improves space utilization, and the hydraulic system uses a triple or quadruple pump layout, which provides more maintenance space).
The skid loader operation control system is simple and easy to understand. After a short training period, the operator can master it. The control device is ergonomic and comfortable to operate. It can effectively reduce labor intensity and improve work efficiency. Even if the operation is long, it is not easy to get tired.
Skid steer loaders can be customized according to different industries and special operation requirements. For example, in industrial production, special gripping devices can be customized to carry workpieces of specific shapes; in the agricultural field, attachments suitable for carrying and processing different crops can be customized, which expands the application range of the equipment.
| Engine | Briggs & Stratton/Rato/Honda/Buy |
| Configuration | Standard dual-channel dual-valve,dual-channel output, optional three-pump three-valve |
| Height | 1400mm |
| Total length (including bucket) | 2300mm |
| Total width | 1050mm |
| Wheelbase | 640mm |
| Machine weight | 812kg |
| Horsepower | 23 hp |
| Rated Power | 15kw |
| Maximum speed | 3600rmp |
| Oil capacity | 1.6L |
| Turning radius | 1317mm |
| Hydraulic system pressure | 17mpa |
| Load | 480 kg |
| Bucket capacity | 0.15m³ |
| Travel speed | 0-3.5km/h |
| Hydraulic oil tank capacity Hydraulic | 26 L |
| Fuel tank capacity | 21 L |
| Maximum height | 2375 mm |
| Maximum axle pin height | 1875mm |
The purchase cost of a skid steer loader is relatively low compared to some other equipment, and its versatility can reduce the need to purchase multiple equipment. Efficient operation can shorten engineering time and reduce labor costs. In the long run, it has a higher return on investment and can create greater economic benefits for users.
