The skid steer loader has a compact body and a small turning radius, and can operate freely in narrow spaces, such as indoor construction, city streets, warehouses, etc. It can quickly replace attachments and achieve multiple functions. It is widely used in construction, municipal maintenance, agricultural production, logistics warehousing, mining and other fields. The control system is simple and easy to understand, and operators can operate it proficiently after a short training period. Although it is small in size, it has excellent power performance and can meet various heavy-duty operation requirements.
| Place of Origin: | Jining, Shandong, China |
| Model Number: | DC480 |
Product Features

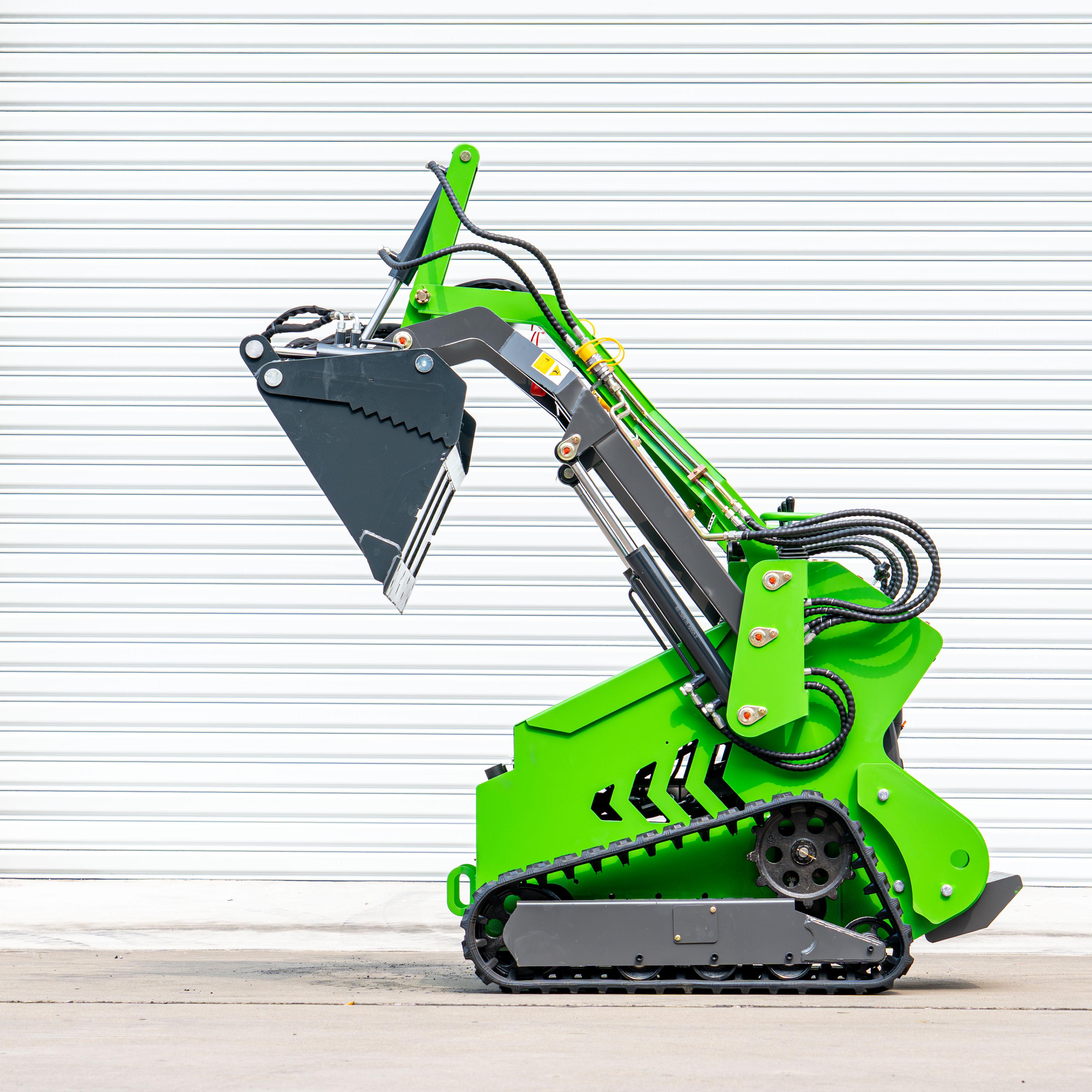

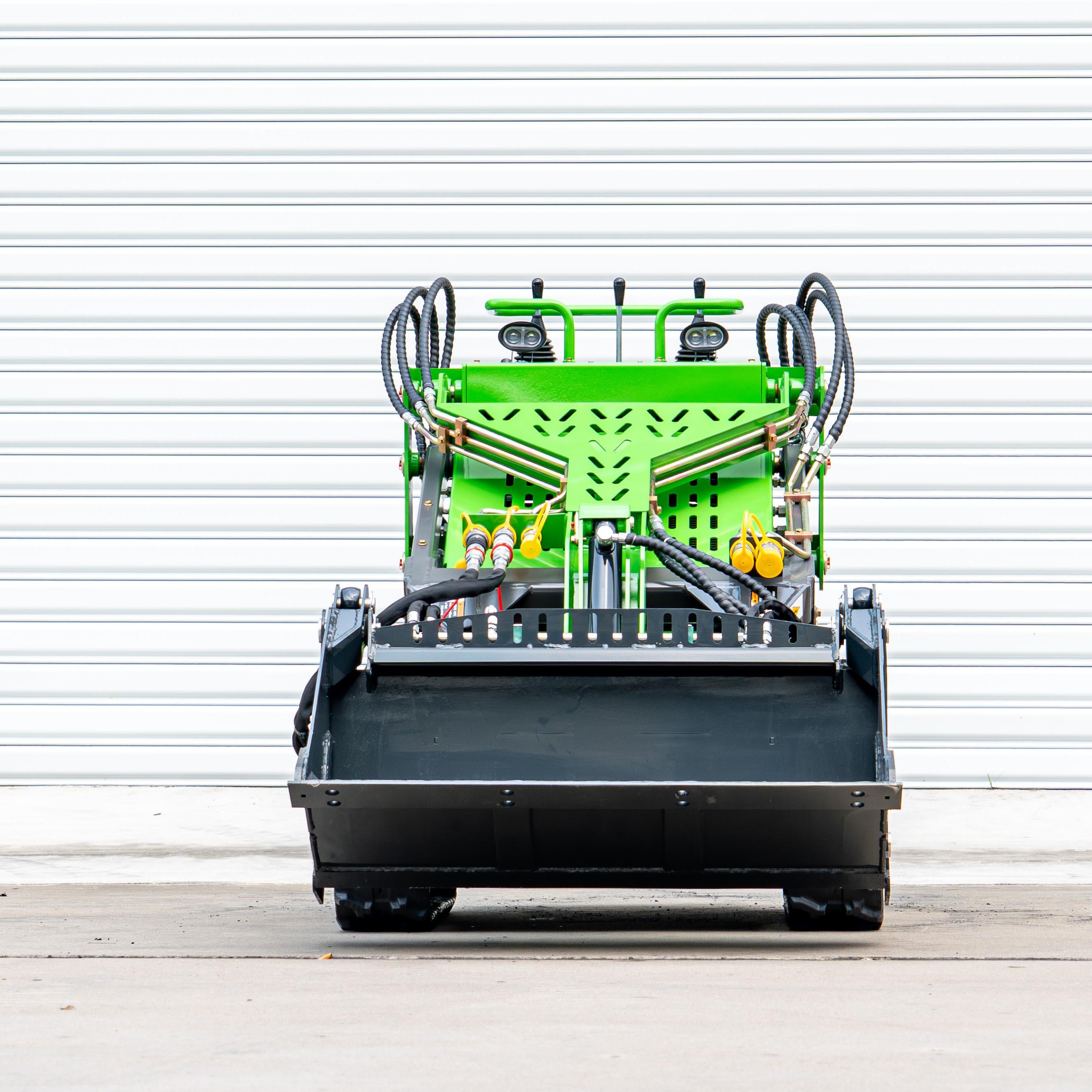

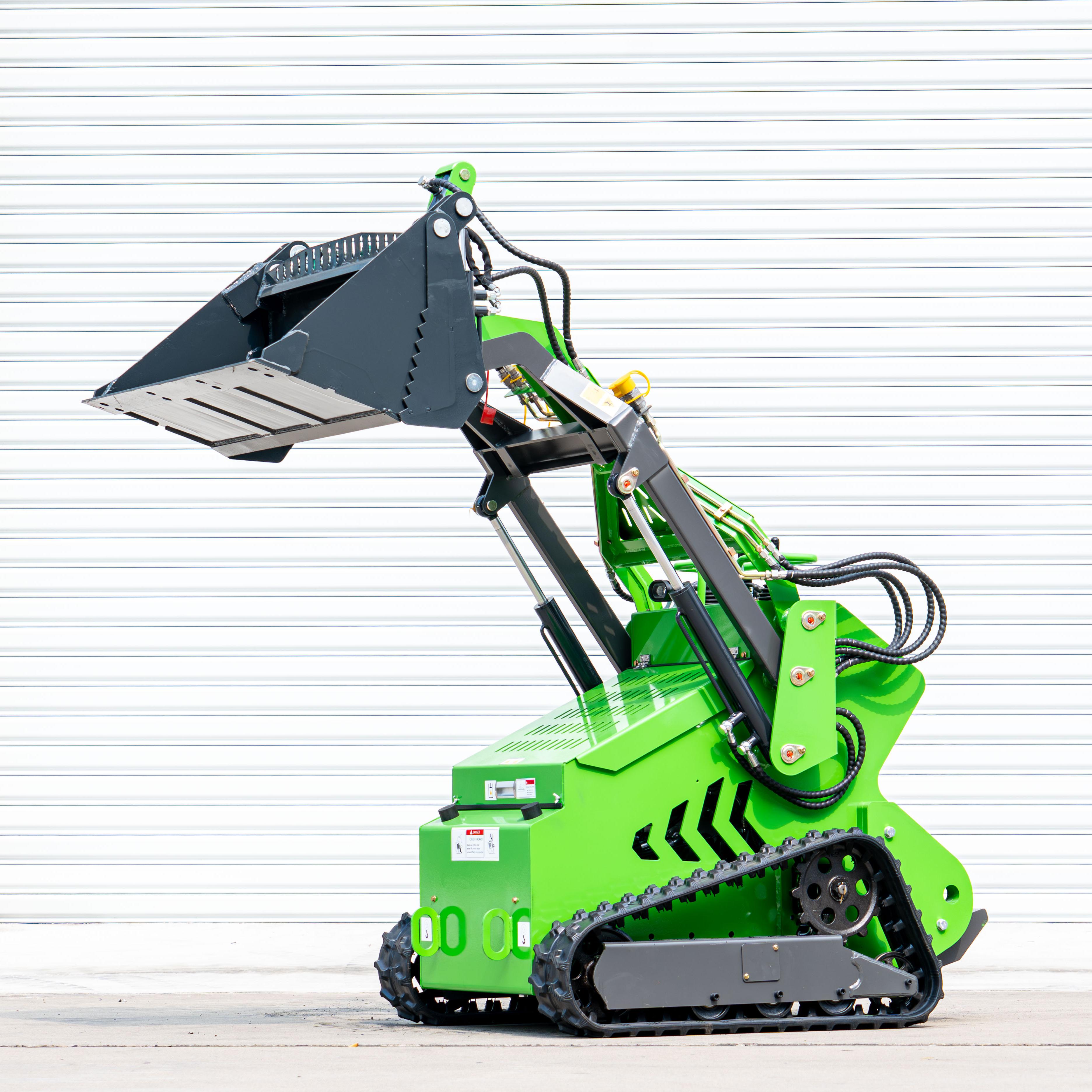

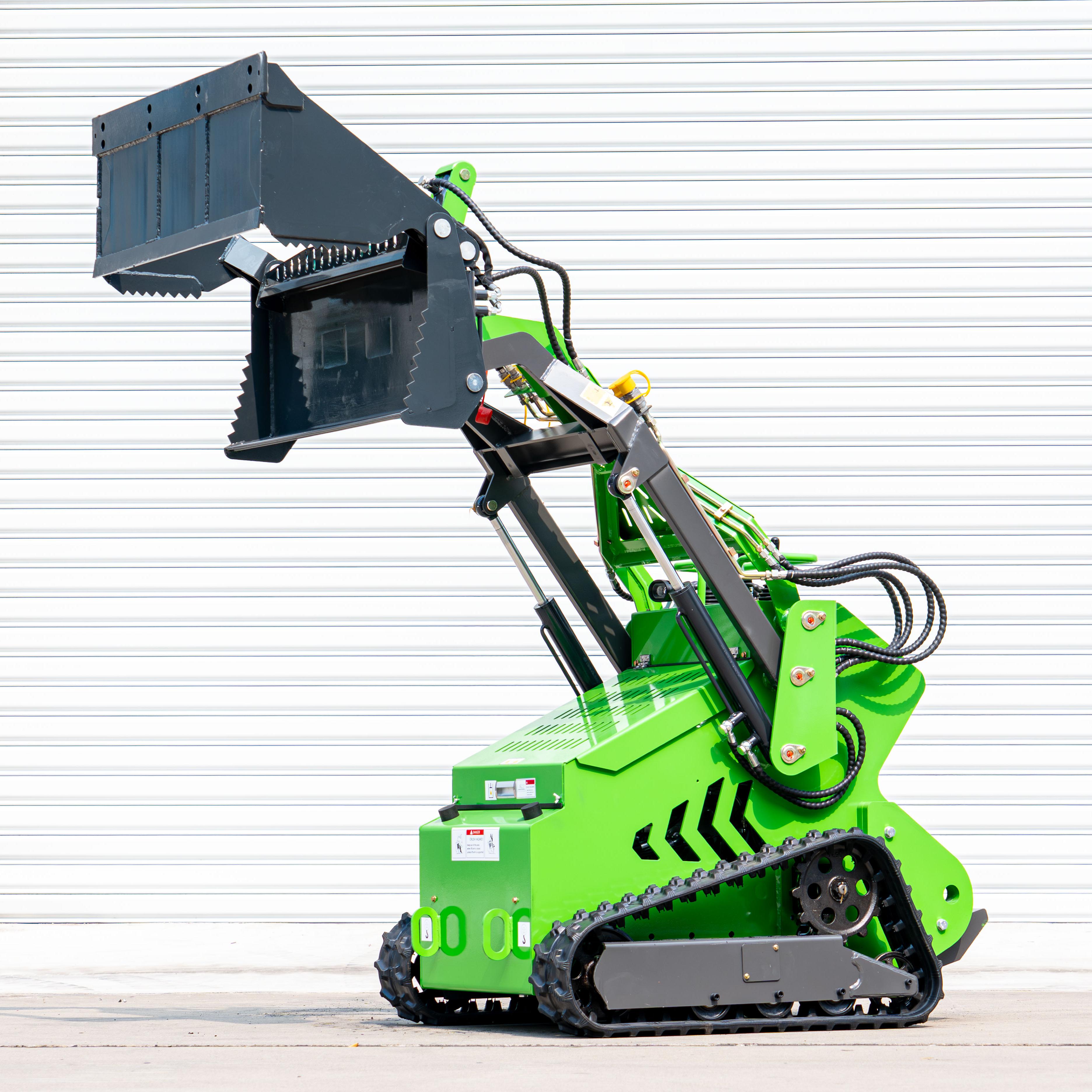

The Model 480 skid steer loader features a robust yet compact design, offering excellent maneuverability, stable operation, and reliable performance in confined or challenging environments. Its practical configuration enables efficient operation across a wide range of job sites.
With a selection of attachments such as buckets, forks, sweepers, and augers, the loader can easily switch between loading, material handling, cleaning, excavation, and other applications. It is well suited for construction, agriculture, landscaping, warehousing, logistics, and municipal work, providing a versatile solution that enhances efficiency while helping reduce overall equipment costs.

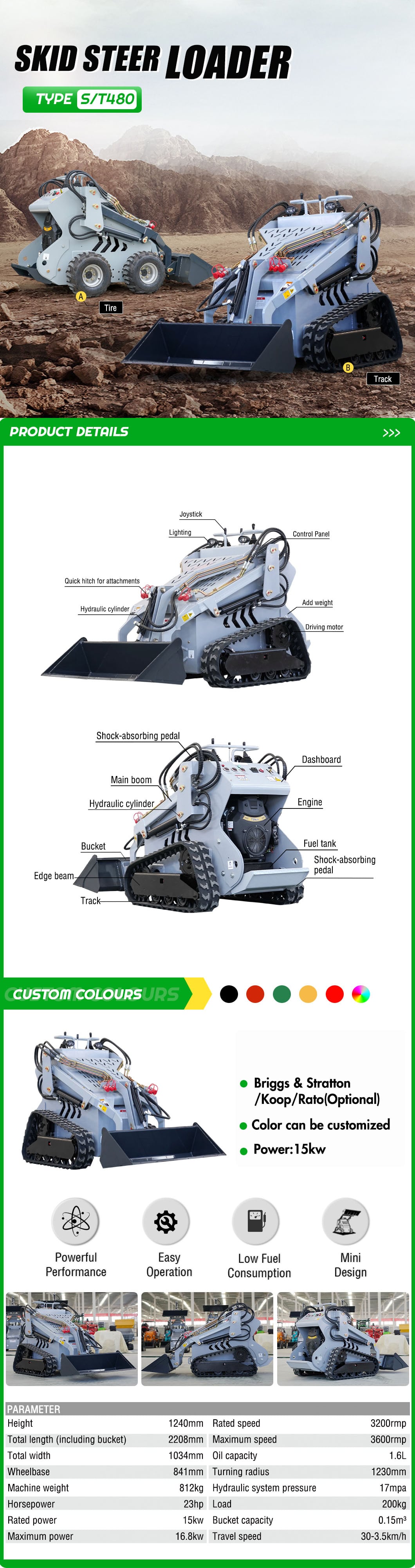

Product Specifications
| Engine | Briggs & Stratton/Rato/Honda/Buy |
| Configuration | Standard dual-channel dual-valve,dual-channel output, optional three-pump three-valve |
| Height | 1400mm |
| Total length (including bucket) | 2300mm |
| Total width | 1050mm |
| Wheelbase | 640mm |
| Machine weight | 812kg |
| Horsepower | 23 hp |
| Rated Power | 15kw |
| Maximum speed | 3600rmp |
| Oil capacity | 1.6L |
| Turning radius | 1317mm |
| Hydraulic system pressure | 17mpa |
| Load | 480 kg |
| Bucket capacity | 0.15m³ |
| Travel speed | 0-3.5km/h |
| Hydraulic oil tank capacity Hydraulic | 26 L |
| Fuel tank capacity | 21 L |
| Maximum height | 2375 mm |
| Maximum axle pin height | 1875mm |
Compared with large construction machinery, skid steer loaders have lower purchase costs, and their modular design makes repairs and maintenance easier (for example, the integrated design of the fuel tank and hydraulic oil tank improves space utilization, and the hydraulic system uses a triple or quadruple pump layout, which provides more maintenance space).
What benefits can we bring to you
（1）: For consumers, our products are affordable, long service life, product models from 320 to 1600 can meet any of your needs,
support customization
（2）: For suppliers, we will provide you with enough profit margin, and at the same time, we will provide
after-sales service for our products within 1-3 years. We will provide you with testing to ensure product quality before leaving
the factory. At the same time, we will provide free publicity for you in your country, and support customized colors and product trademarks
The Model 480 skid-steer loader offers powerful performance, a compact design, agile handling, and versatility, ensuring stable and efficient operation in confined spaces and complex working conditions. By rapidly attaching various tools—such as buckets, forks, sweepers, and augers—it performs multiple functions like loading, material handling, sweeping, and excavating, thereby reducing equipment investment and enhancing operational efficiency. Furthermore, its robust chassis and reliable hydraulic system meet the demands of prolonged, heavy-duty operation, making it highly adaptable and competitive across sectors such as construction, agriculture, landscaping, warehousing, and municipal engineering.
